No está disponible
P/N
CA-1R1-00S1WN-02
69,99 €

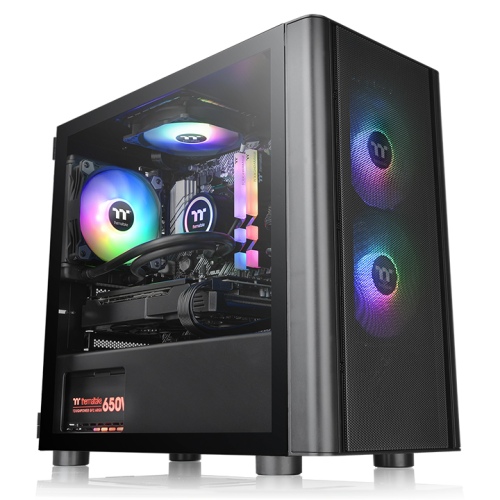

The V150 TG ARGB Breeze is a micro chassis that comes with three preinstalled 120mm ARGB fans and can support up to a standard Micro ATX motherboard

  • The image is for reference only.
  •




Ideal Expandability and Ventilation
The V150 TG ARGB Breeze has good expandability. It can support a CPU cooler with a maximum height of 155mm, horizontal VGA placement of up to 350mm in length (without a front fan), and a power supply with a length of up to 220mm. Optimized for excellent cooling capabilities, the chassis comes with one presintalled 120mm standard rear fan, you can also choose to install two 140mm fans at the front and one 140mm fan on top. For All-in-One CPU cooling compatibilities, the V150 TG ARGB Breeze can support 120mm, 240mm and a 280mm at the front and 120mm in the rear.






Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. By having more than two applications open may cause conflicts
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
Más Información
P/N CA-1R1-00S1WN-02
La serie Serie V
Modelo V150 TG ARGB Breeze Edition
Case Type Micro Case
Dimension (H x W x D) 398 x 208 x 440 mm
(15.67 x 8.19 x 17.32 inch)
Net Weight 5.55 kg / 12.2 lbs.
Side Panel 4mm Tempered Glass x 1
Color Black
Material SPCC
Cooling System Front(intake):
120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 2
Rear (exhaust):
120 x 120 x 25 mm ARGB fan (1000rpm, , 27.2 dBA) x 1
Drive Bays
-Accessible
-Hidden
2 x 2.5" or 2 x 3.5”
Expansion Slots 4
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front: 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top: 1 x 120mm
1 x 140mm
Rear: 1 x 120mm
Radiator Support Front: 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear: 1 x 120mm
Clearance CPU cooler height limitation: 155mm
VGA length limitation: 350mm (Without Front Fan)
PSU length limitation: 220mm
