Toughpower GF3 1350W Gold - TT Premium Edition
The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1350W can deliver up to 600W for PCIe 5.0 graphics cards.
Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
Toughpower GF3 1350W Gold - TT Premium Edition
PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1350W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±3%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.
Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0
Specifications which supports up to 200% power excursion, reaches 70% low load
efficiency and complies with required power supply timing standards. The GF3 series can
sustain up to 3x GPU power excursion and 2x total power excursion.
ATX 3.0
ATX 2.0
Total power excursion
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.
1 VGA Power Connector
2 VGA Power Connector
3 VGA Power Connector
16 pin VGA Power Connector
PCIe Gen 5.0 Ready
Toughpower GF3 1350W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.
Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

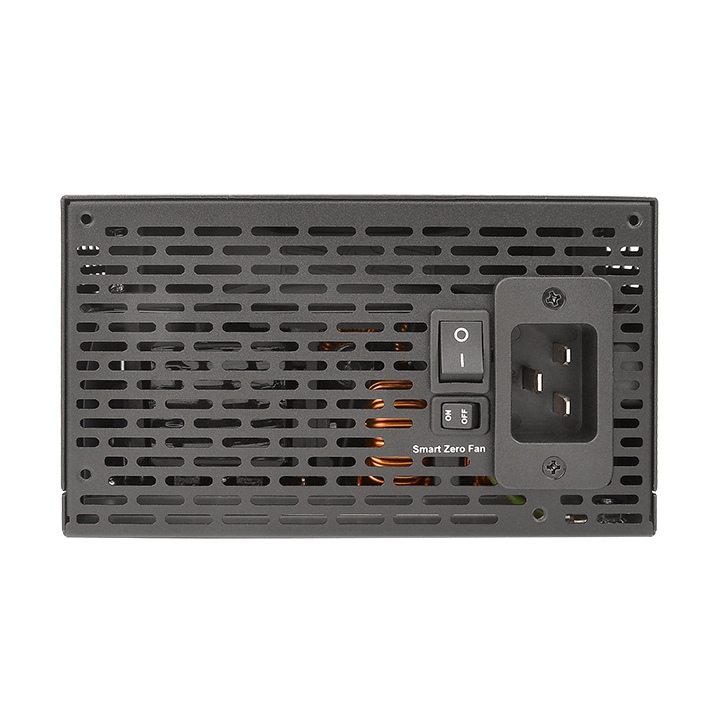

Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and allows your performance-critical components to function reliably for longer.
Intel Specification
TOUGHPOWER GF3 Series
Extremely Strict Voltage Regulation ＜±3%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±3% for +12V and +5V, providing steady clean power through exceptional voltage stability.
Intel Specification
TOUGHPOWER GF3 Series

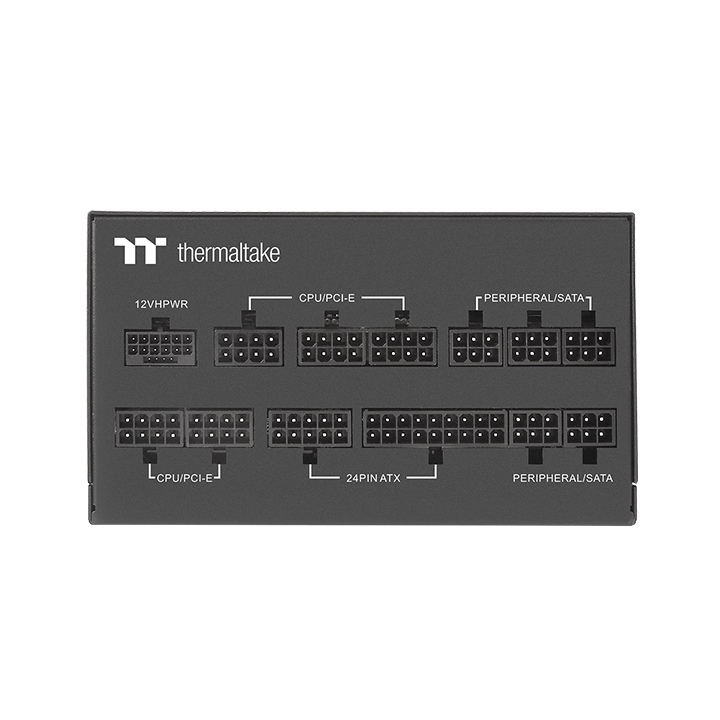

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
| Wattage | Connector Type | Connector Quantity per cable |
Cable Quantity | Cable Length | |
|---|---|---|---|---|---|
| Toughpower GF3 1350W | Main Power (24Pin) |
 |
1 | 1 | 600mm |
| ATX 12V (8/4+4Pin) |
 |
1 | ATX 12V 8Pin x1 ATX 12V 4+4Pin x1 |
700mm | |
| PCIe (6+2Pin) |
 |
2 | 3 | 500mm + 150mm | |
| PCIe (12+4Pin) |
 |
1 | 1 | 500mm | |
| SATA |  |
3 | 4 | 500mm + 150mm + 150mm | |
| Peripheral |  |
4 | 1 | 500mm + 150mm + 150mm + 150mm | |
| Floppy Adapter |
 |
1 | 1 | 150mm | |
100% High Quality Japanese 105°C/221°F Electrolytic Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

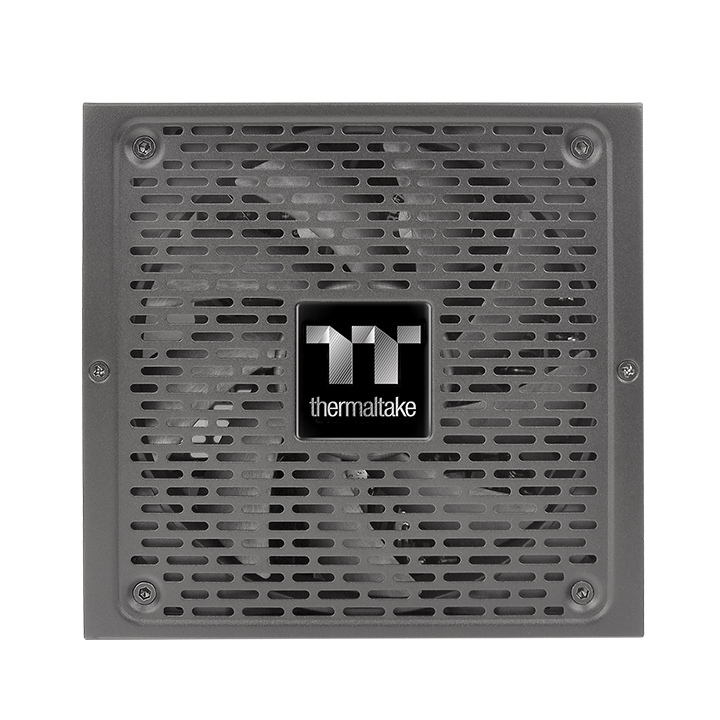

140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan to guarantee superior cooling performance.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| P/N | PS-TPD-1350FNFAGE-4 |
|---|---|
| watts | 1350W |
| Modelo | TPD-1350AH3FSG |
| Max. Output Capacity | 1350W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| Peso | 1.83 KG |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 100% of full load |
| Input Current | 16 - 8A |
| Input Frequency Range | 50-60Hz |
| Input Voltage | 100 - 240V~ |
| Operating Temperature | 0°C to + 50°C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 20% to 95%, non-condensing |
| SISTEMA DE REFRIGERACIÓN | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC |
| PCI-E 6+2pin | 6 |
| PCIe 12+4pin | 1 |
User Manual
- Nombre de archivo
- Descripción
- Tamaño
- Version
- Release Date
-
TOUGHPOWER GF3 1350W & 1650W Manual
- 2022-09-05
