Toughpower GF1 850W - TT Premium Edition

Toughpower GF1 850W - TT Premium Edition

Disponible
SKU
PS-TPD-0850FNFAGx-1
Fuente de alimentación totalmente modular con certificación 80 PLUS Gold con ventilador hidráulico

Toughpower GF1 850W - TT Premium Edition

La serie totalmente modular Toughpower GF1 está disponible en modelos de 650W/850W y está diseñada para ofrecer una eficiencia de 80 PLUS Gold. La serie cuenta con un ventilador de cojinete hidráulico de 140 mm, condensadores japoneses y otros componentes de primera calidad para entregar una potencia continua y estable con una temperatura hasta 50 ° C, mientras que se garantiza un funcionamiento casi silencioso y un rendimiento confiable. Con una amplia garantía de 10 años, el Toughpower GF1 es capaz de satisfacer al mercado, donde los entusiastas de las PC están buscando una fuente de alimentación de primera calidad con las últimas funciones.

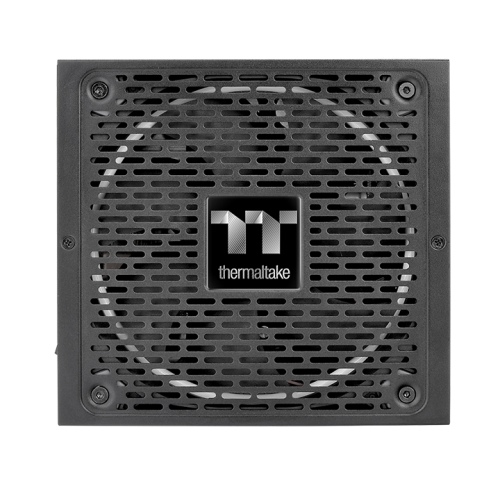

※The photo is for reference.

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

<30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation <±2%

The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Más Información
P/N PS-TPD-0850FNFAGx-1
watts 850W
Factor de forma ATX
Modelo TTP-850AH3FCG
Max. Output Capacity 850W
Peak Output Capacity 1020W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 12A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Gold at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC
PCI-E 6+2pin 6
Protection OCP, OVP, UVP, OPP, SCP, OTP
