Toughpower GF1 650W - TT Premium Edition
La serie totalmente modular Toughpower GF1 está disponible en modelos de 650W/850W y está diseñada para ofrecer una eficiencia de 80 PLUS Gold. La serie cuenta con un ventilador de cojinete hidráulico de 140 mm, condensadores japoneses y otros componentes de primera calidad para entregar una potencia continua y estable con una temperatura hasta 50 ° C, mientras que se garantiza un funcionamiento casi silencioso y un rendimiento confiable. Con una amplia garantía de 10 años, el Toughpower GF1 es capaz de satisfacer al mercado, donde los entusiastas de las PC están buscando una fuente de alimentación de primera calidad con las últimas funciones.
※The photo is for reference.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.
Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with intelligent RPM
controls to help
guarantee superior cooling performance and near silent operation.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard
±5% for major rails and
±10% for -12V, is set to no more than ±2% for major rails to meet the highest
performance.

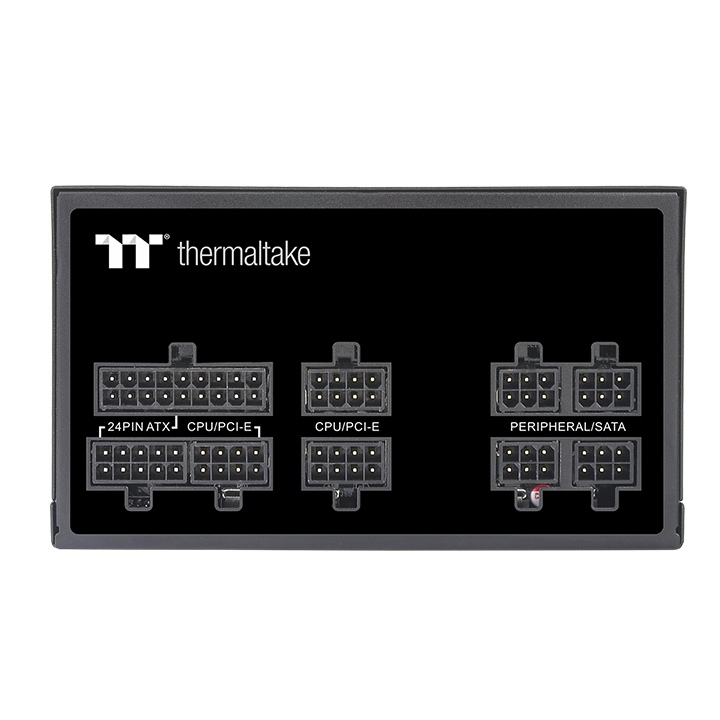

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system
at an advantageous
voltage. Low-profile flat black cable makes cable management easier, reduces clutter and
increases airflow
inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest
stability, while
remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable
supply to other PC
components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high
energy efficiency up
to 90%
and is certified to 80 PLUS® Gold. The series has been optimized to work with all
generations of Intel’s
processors to achieve maximum energy saving.
| P/N | PS-TPD-0650FNFAGE-1 |
|---|---|
| watts | 650W |
| Modelo | PS-TPD-0650FNFAGx-1 |
| Tipo | TTP-650AH3FCG |
| Max. Output Capacity | 650W |
| Peak Output Capacity | 780W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| SISTEMA DE REFRIGERACIÓN | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC |
| PCI-E 6+2pin | 4 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
User Manual
- Nombre de archivo
- Descripción
- Tamaño
- Version
- Release Date
-
Toughpower_GF1_Manual
- 4.5 MB
- 2019-04-23
