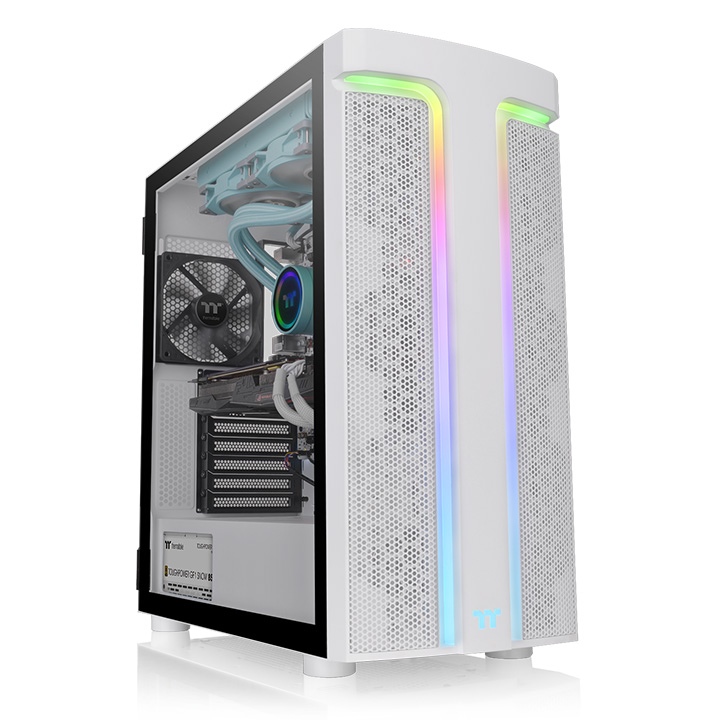

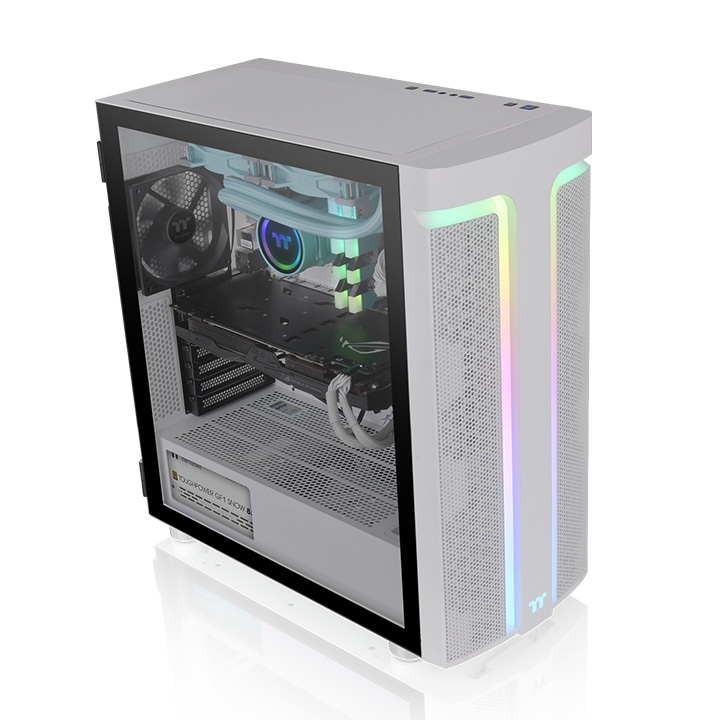

The H590 TG Snow ARGB mid-tower chassis supports up to E-ATX (12" x 13") Motherboards and it has a unique design on the front panel, featuring two RGB lighting strips around the T shaped pillar. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock. H590 TG ARGB mid-tower chassis comes with two pre-installed fans, one at the front and the other at the rear; what’s more, up to seven 120mm fans can be fitted to the chassis and up to a 360mm radiator can be placed on the top and the front of the chassis.
- The image is for reference only.

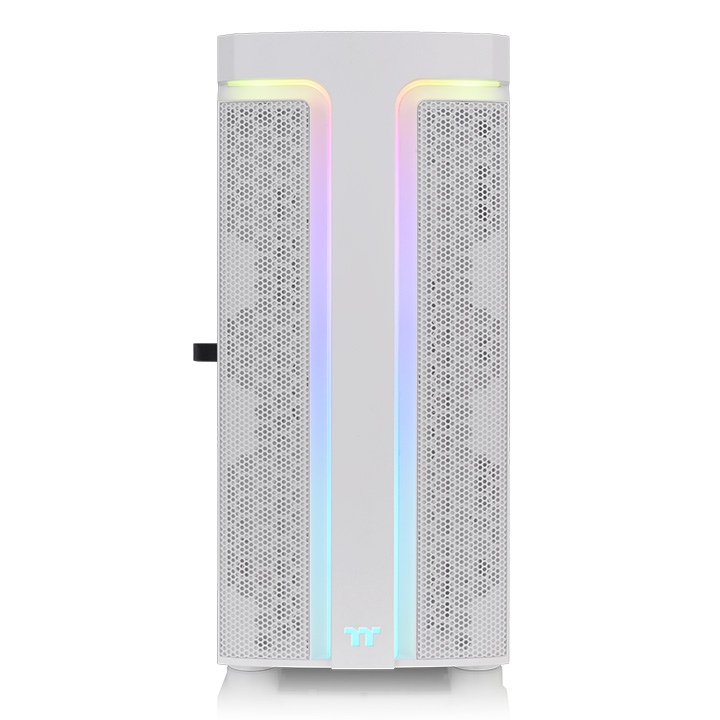

H590 TG Snow ARGB mid-tower chassis has a unique design of the front panel, featuring two RGB lighting strips around the T shape. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
H590 TG Snow ARGB mid-tower chassis comes with two pre-installed standard fans, one at the front and the other at the rear, delivering better cooling performance.
H590 TG Snow ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

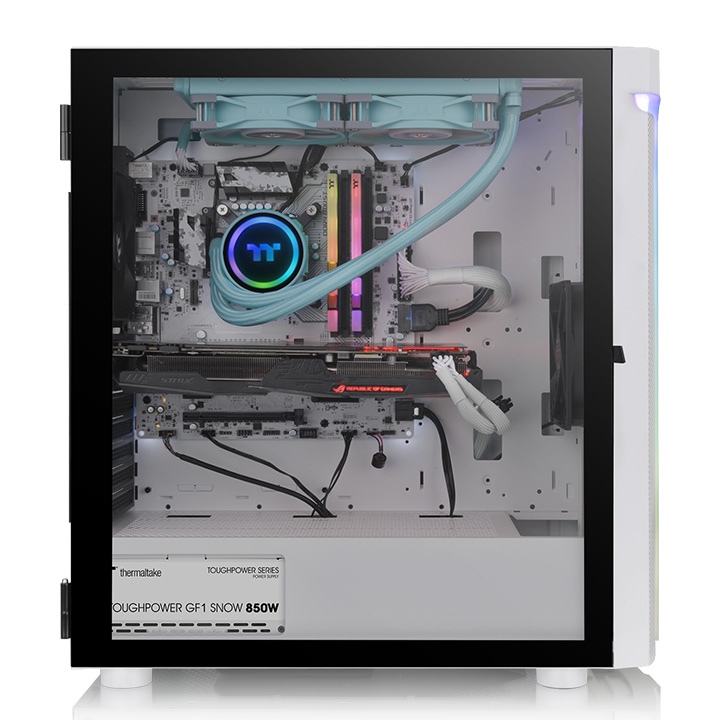

The 4mm hinged tempered glass panel on the left side of the H590 TG Snow ARGB mid-tower chassis is built to be more durable, scratch resistant, and transparent for viewing the hardware.
There is one magnetic filter on the top of the chassis to provide a good dust protection.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0 ports, and one HD Audio and one RGB lighting control button are placed on the top panel to grant direct access when needed.
(Water 3.0 and Floe series)
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | - |
| Top | ● | ● | ● | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 3 | - |
| Top | 3 | 2 | - |
| Rear | 1 | 1 | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-1X4-00M6WN-00 |
|---|---|
| La serie | Serie H |
| Modelo | H590 TG ARGB Snow |
| TIPO DE CAJA | Mid Tower |
| DIMENSIONES (AL x AN x PR) | 487 x 216 x 467 mm (19.2 x 8.5 x 18.4 inch) |
| PESO NETO | 7.45 kg / 16.42 lbs. |
| PANEL LATERAL | 4mm Tempered Glass x 1 |
| Color | White |
| Material | SPCC |
| SISTEMA DE REFRIGERACIÓN | Front(intake): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 |
| BAHÍAS DE EXPANSIÓN | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| RANURAS DE EXPANSIÓN | 7 |
| PLACAS BASE | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| PUERTOS E/S | USB 3.0 x 2, HD Audio x 1, LED button x 1 |
| FUENTE DE ALIMENTACIÓN | Standard PS2 PSU (optional) |
| COMPATIBILIDAD VENTILADORES | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| COMPATIBILIDAD RADIADORES | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| LIMITACIONES | CPU cooler height limitation: 160mm VGA length limitation: 360mm PSU length limitation: 180mm |
User Manual
- Nombre de archivo
- Descripción
- Tamaño
- Version
- Release Date
-
H590 TG ARGB Manual
- H590 TG ARGB Manual
- 2022-08-17
